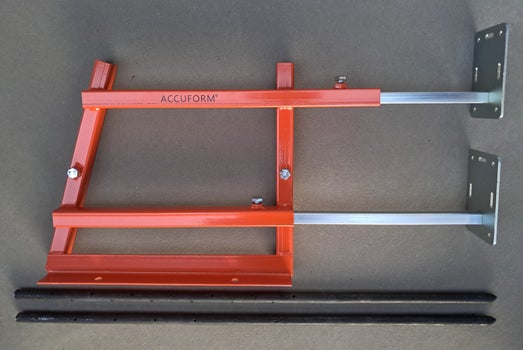

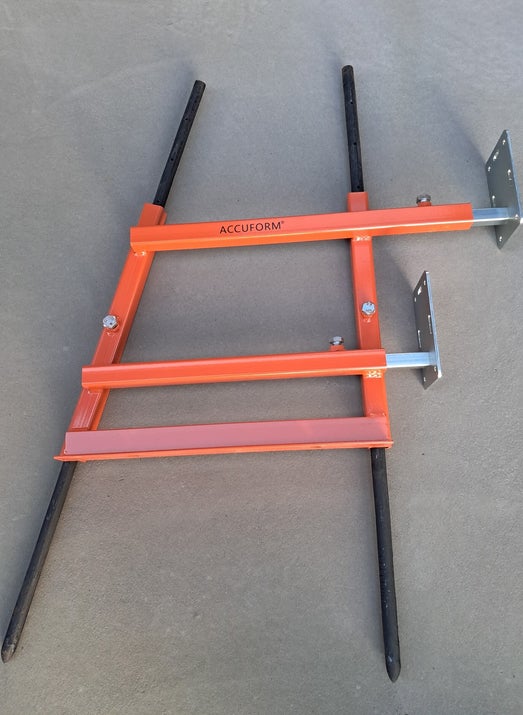

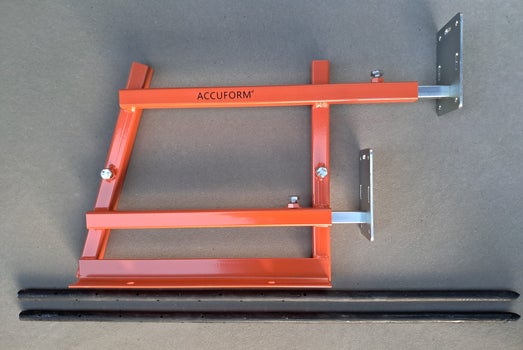

Adjustable A Frame Formwork Brace with 2 x 900mm long Steel Stakes. As pictured below.

Cost is $160.00 per unit when purchasing 50 units(box lot) or $175 per unit individually, prices include GST.

A Frame Specifications:

Size: L600mm x W60mm x H385mm
Insert adjustment: 350mm

Zinc plated and powder coated high quality steel
Box section outer dimensions: 30mm for the frame and 20mm for the inserts
Steel thickness: 3mm for the frame and 2.5mm for the inserts
7mm diameter screw holes in the adjustable feet
M12 fastening bolts with 19mm heads

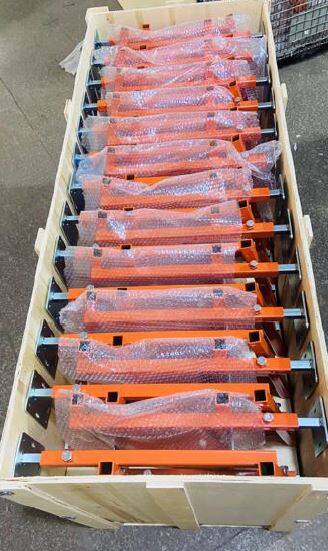

A Frames are packaged 50 frames per plywood box.
Box dimensions approx: L1730mm x W670mm x H950mm

Weight: 390kg

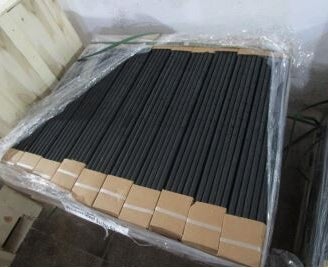

Solid Steel Stakes:
900mm long x 19mm diameter
Tapered on one end for easy penetration into most substrates
Screw holes through them along the shaft at 90 degree angles
Packaged in bundles of 10
